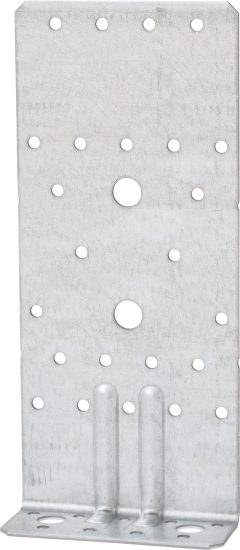

Angle bracket 423

Angle bracket for mounting facades on, for example, a lightweight concrete wall.

Creates a distance between the inner- and outer walls for the possibility of additional insulation.

Material

2,0 mm pre-galvanized steel plate

Nail holes: Ø 5,0 mm Bolt holes: Ø 12,0 mm Service class: 2

Article no	Thickness (mm)	Length (mm)	Height (mm)	Width (mm)	Weight	Quantity/box	CAD (requires account)
4230301	2,0	40	170	95	0,29	50
4230302	2,0	40	220	95	0,36	50
