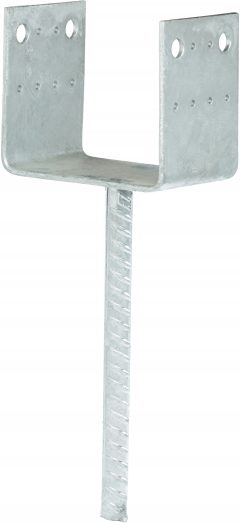

Column shoe type B -5,0mm

Used for casting in conrete when fixing posts, e.g. in fencing, trellis work and roofed terraces etc.

Material

5,0 mm steel, hot dip galvanized after welding

Nail holes: Ø 5,0 mm Bolt holes: Ø 13,5 mm Service class: 3

Article no.	Thickness (mm)	Length (mm)	Height (mm)	Width (mm)	Depth (mm)	Weight	Quantity/box	CAD (requires account)

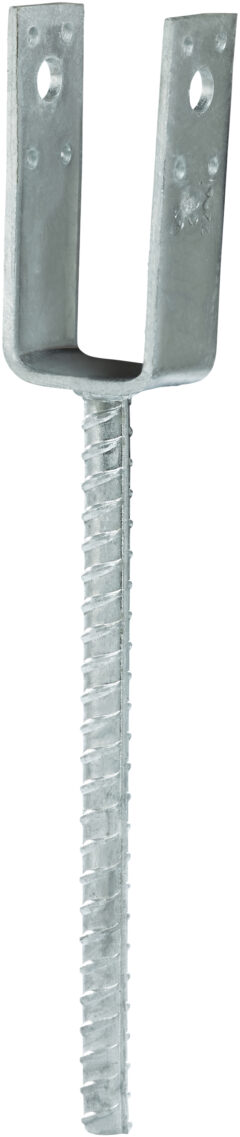

6104840	5,0	250	121	48	40	0,85	20	DWG 3D Step

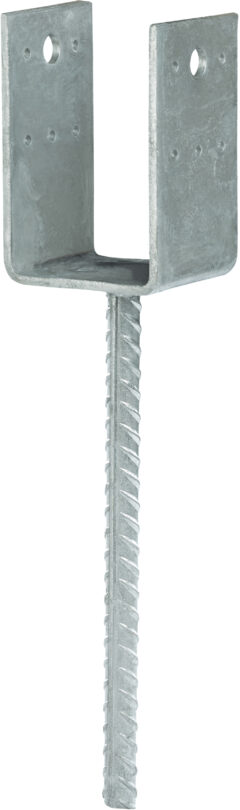

6107370	5,0	250	125	73	70	1,23	10	DWG 3D Step

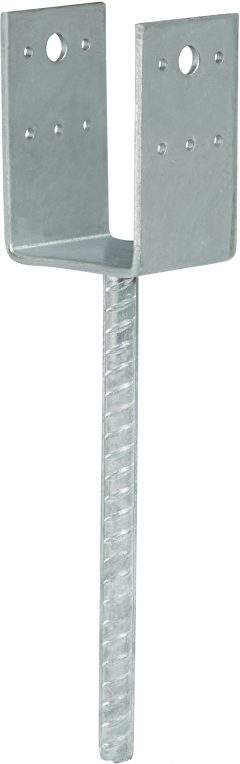

6108070	5,0	250	121	80	70	1,21	10	DWG 3D Step
6110070	5,0	250	121	100	70	1,35	10	DWG 3D Step

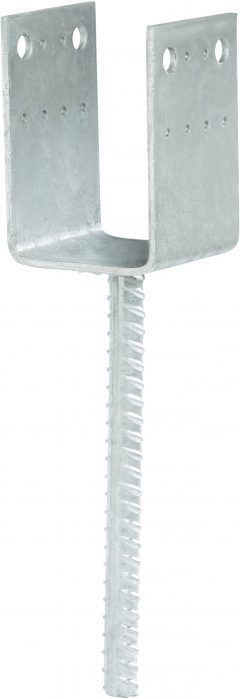

6109090	5,0	250	136	90	90	1,67	10	DWG 3D Step
6110090	5,0	250	131	100	90	1,77	10	DWG 3D Step
6111590	5,0	250	124	115	90	1,91	10	DWG 3D Step

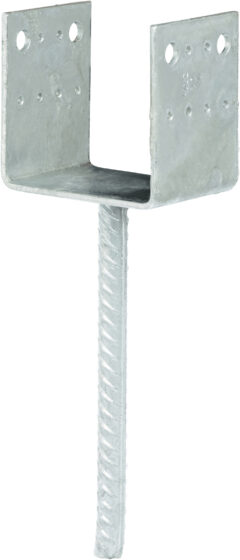

6112090	5,0	250	121	120	90	1,72	10	DWG 3D Step
6114090	5,0	250	121	140	90	1,89	10	DWG 3D Step

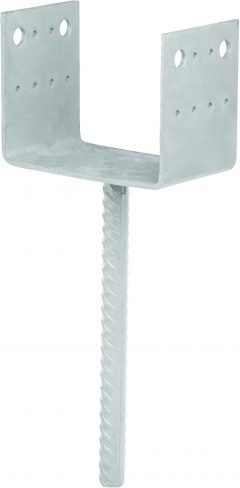

6114890	5,0	250	117	148	90	1,87	10	DWG 3D Step
