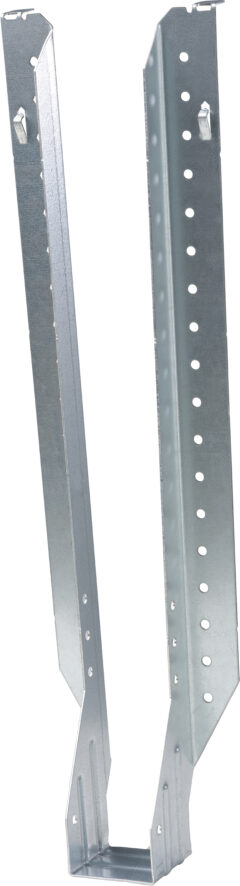

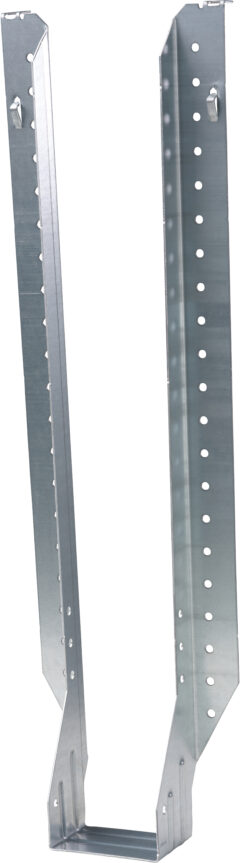

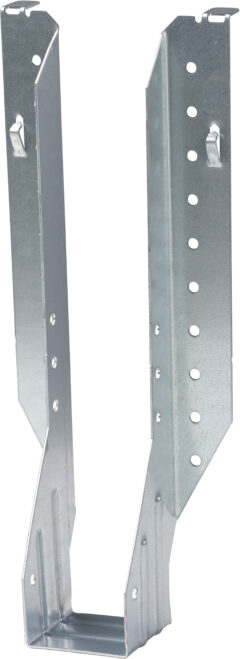

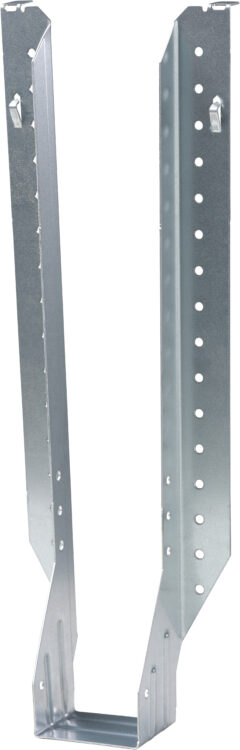

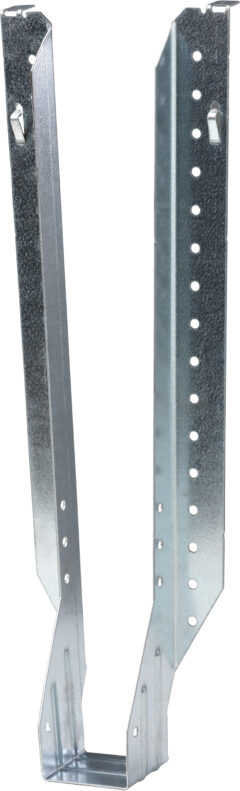

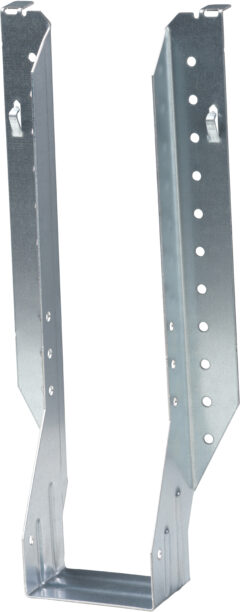

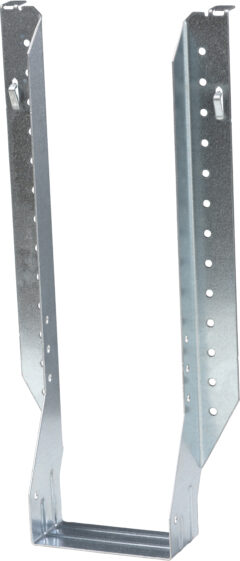

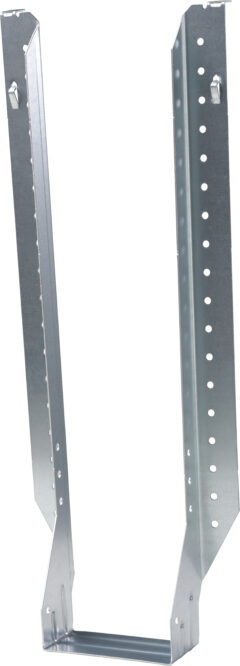

Joist hanger S-I
Light beam, I-beam or masonite beam is a beam consisting of solid flanges and a web of a 10 mm thick OSB or chipboard.
The joist hangers are adapted to fasten the light beams both with and without web reinforcements.
The joist hangers are available in two different models, S-I and I-I. S-I stands for “Solid – I-beam” which are developed for when you have a solid primary beam and I-beam as secondary. The upper tabs on the S-I can easily be bent up so that they become straight if you want to attach the beam shoe in the middle of a secondary beam and not line the upper edge.
Model I-I stands for “I-beam – I-beam”, which means that there is an I-beam both as primary and secondary. I-I must enclose the primary beam of I-beam both above and below and therefore requires that primary and secondary are of the same height (but not the same width).
Material
1,25 mm pre-galvanized steel plate
Nail holes: Ø 5,0 mm Service class: 2
Assembly instructions
| Article no. | Thickness (mm) | Height (mm) | Width (mm) | Weight | Quantity/box | CAD (requires account) |
|---|---|---|---|---|---|---|
| For wooden beam 47 | ||||||

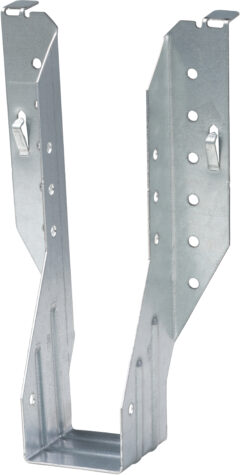

| 5200700 | 1,25 | 200 | 47 | 0,22 | 50 | |

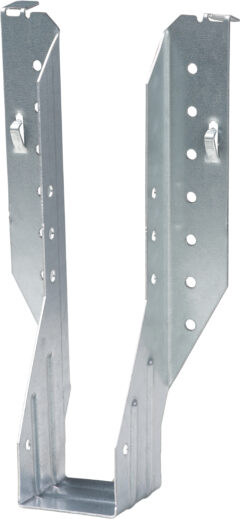

| 5200701 | 1,25 | 220 | 47 | 0,24 | 50 | |

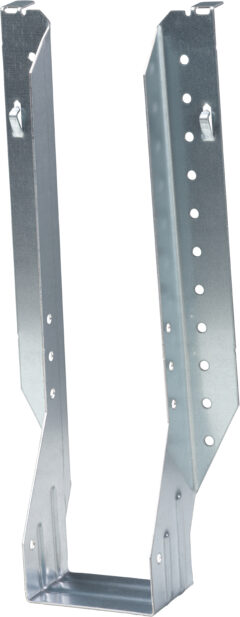

| 5200722 | 1,25 | 240 | 47 | 0,26 | 40 | |

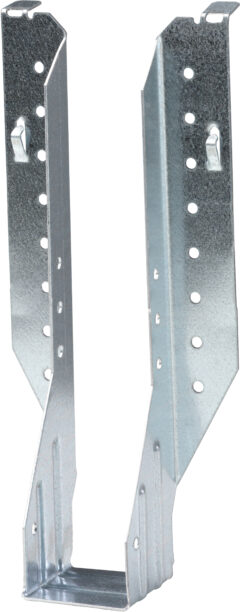

| 5200702 | 1,25 | 250 | 47 | 0,27 | 50 | |

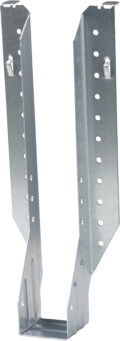

| 5200703 | 1,25 | 300 | 47 | 0,32 | 40 | |

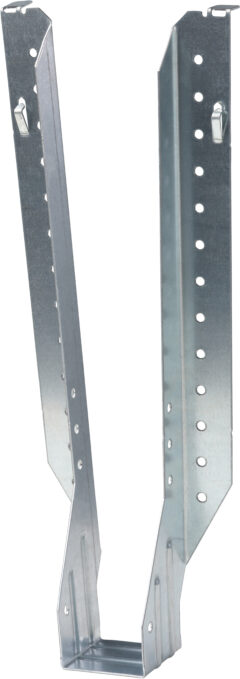

| 5200704 | 1,25 | 350 | 47 | 0,37 | 25 | |
| 5200705 | 1,25 | 400 | 47 | 0,42 | 15 | |
| 5200706 | 1,25 | 450 | 47 | 0,47 | 15 | |

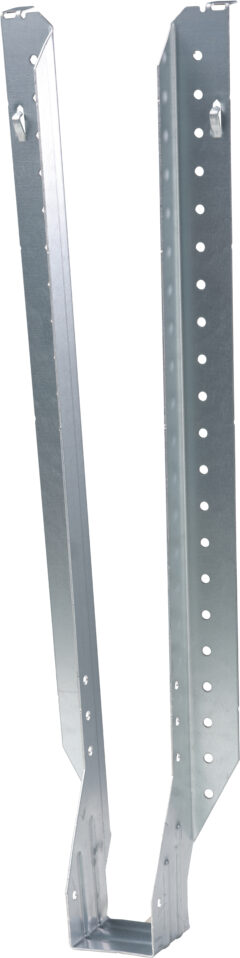

| 5200707 | 1,25 | 500 | 47 | 0,52 | 25 | |
| For wooden beam 61 | ||||||
| 5200726 | 1,25 | 200 | 61 | 0,22 | 40 | |
| 5200727 | 1,25 | 220 | 61 | 0,25 | 40 | |

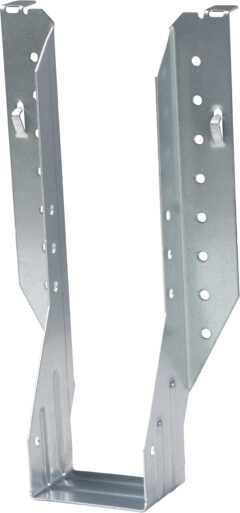

| 5200728 | 1,25 | 240 | 61 | 0,27 | 40 | |

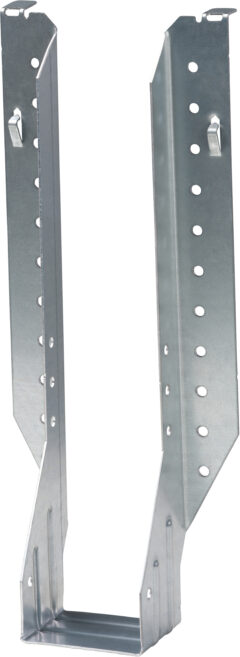

| 5200729 | 1,25 | 300 | 61 | 0,33 | 25 | |
| 5200730 | 1,25 | 360 | 61 | 0,39 | 25 | |
| 5200731 | 1,25 | 400 | 61 | 0,43 | 10 | |
| For wooden beam 70 | ||||||

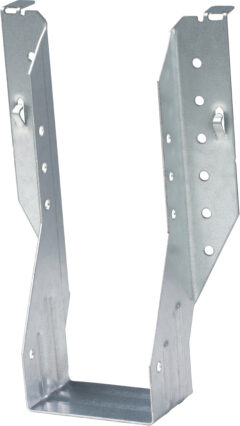

| 5200708 | 1,25 | 200 | 70 | 0,23 | 25 | |

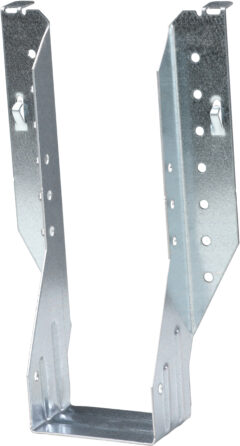

| 5200709 | 1,25 | 220 | 70 | 0,25 | 25 | |

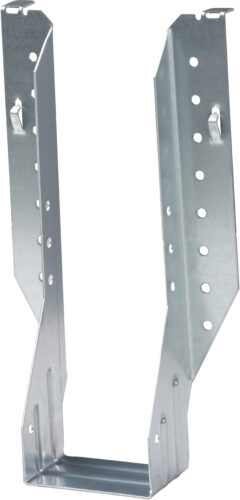

| 5200723 | 1,25 | 240 | 70 | 0,27 | 25 | |

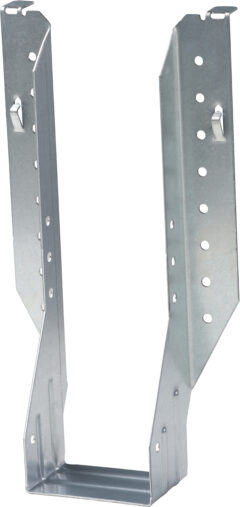

| 5200710 | 1,25 | 250 | 70 | 0,28 | 25 | |
| 5200711 | 1,25 | 300 | 70 | 0,33 | 25 | |

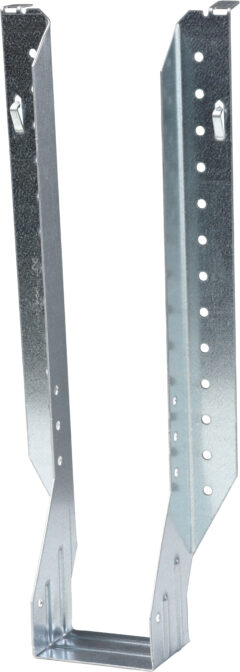

| 5200712 | 1,25 | 350 | 70 | 0,38 | 25 | |

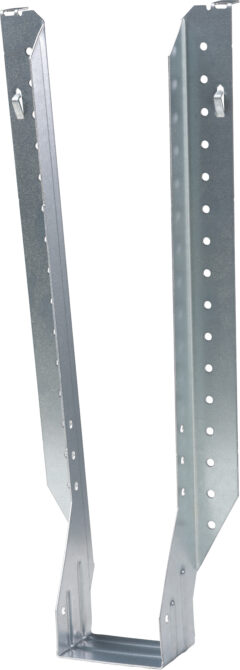

| 5200713 | 1,25 | 400 | 70 | 0,43 | 10 | |

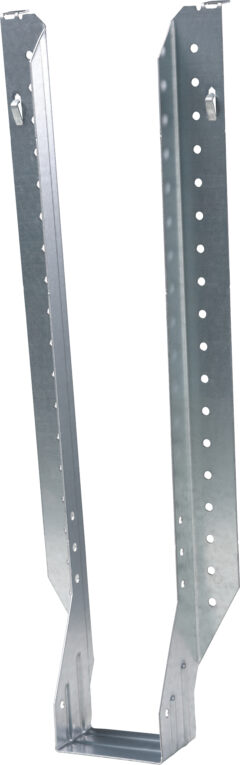

| 5200714 | 1,25 | 450 | 70 | 0,48 | 10 | |
| 5200715 | 1,25 | 500 | 70 | 0,53 | 25 | |
| For wooden beam 91 | ||||||
| 5200732 | 1,25 | 200 | 92 | 0,23 | 25 | |
| 5200733 | 1,25 | 220 | 92 | 0,25 | 25 | |
| 5200734 | 1,25 | 240 | 92 | 0,31 | 25 | |

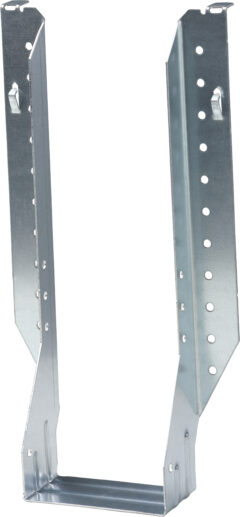

| 5200735 | 1,25 | 300 | 92 | 0,34 | 25 | |

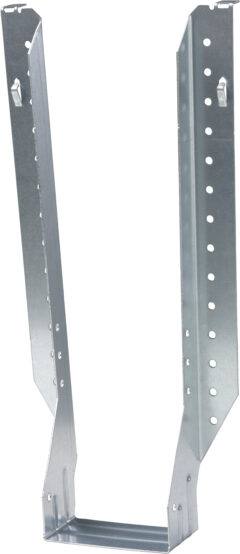

| 5200736 | 1,25 | 360 | 92 | 0,40 | 25 | |

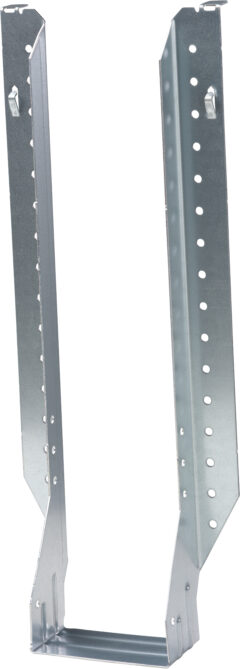

| 5200737 | 1,25 | 400 | 92 | 0,44 | 25 | |
| For wooden beam 97 | ||||||

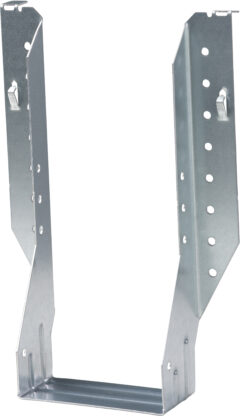

| 5200724 | 1,25 | 240 | 97 | 0,28 | 25 | |
| 5200716 | 1,25 | 250 | 97 | 0,29 | 25 | |

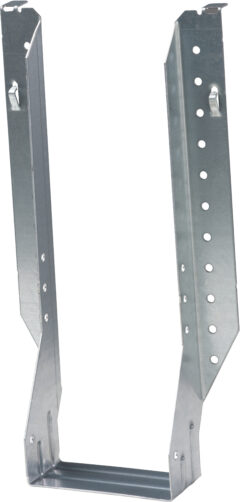

| 5200717 | 1,25 | 300 | 97 | 0,34 | 25 | |
| 5200718 | 1,25 | 350 | 97 | 0,40 | 25 | |

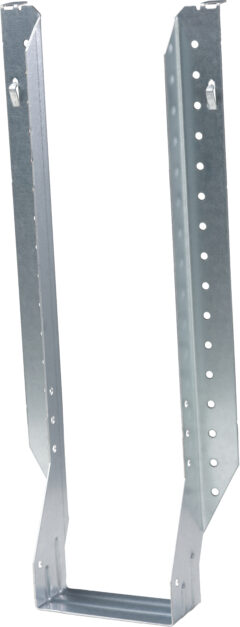

| 5200719 | 1,25 | 400 | 97 | 0,44 | 10 | |
| 5200720 | 1,25 | 450 | 97 | 0,49 | 10 | |

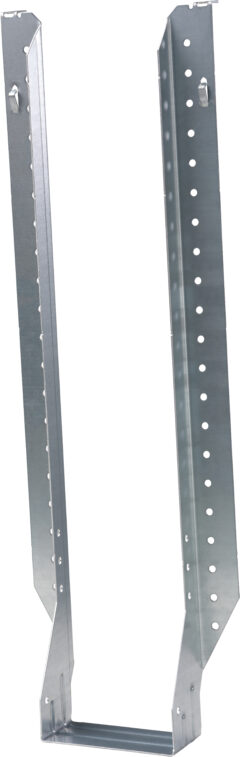

| 5200721 | 1,25 | 500 | 97 | 0,54 | 25 |
