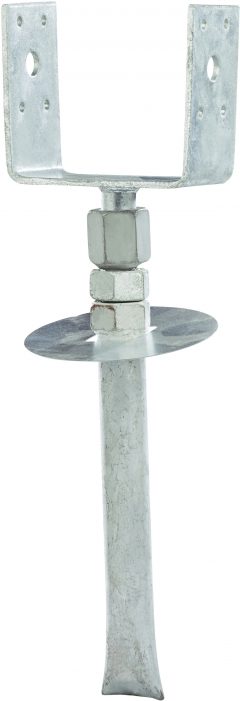

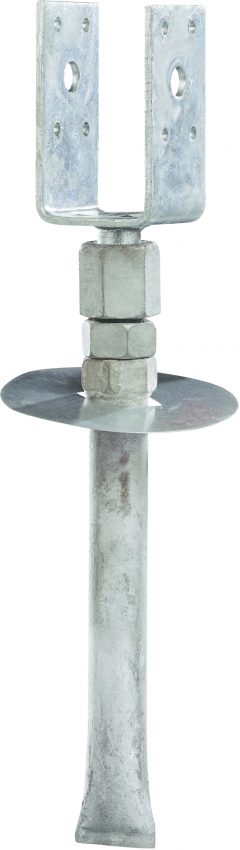

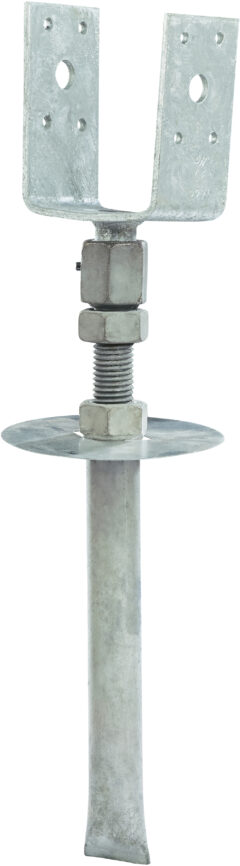

Hero Column shoe Adjustable type U – 4,0 mm

Hero adjustable column shoe can be adjusted from 55 to 235 mm vertically after installation.

For embedding in concrete.

The HERO program offers a wide range of adjustable column shoes.

Column shoe Hero is not suitable for fences or other constructions with low vertical loads.

Material

4,0 mm steel, heavy galvanized after welding

Nail holes: Ø 5,0 mm Bolt holes: Ø 12,0 mm Service class: 3

Article no.	Thickness (mm)	Height (mm)	Width (mm)	Depth (mm)	Weight	Quantity/box
6100201	4,0	90	48	50	1,40	10
6100202	4,0	90	73	50	1,50	10
6100203	4,0	90	100	50	1,60	10
