5330180

5330160

5330200

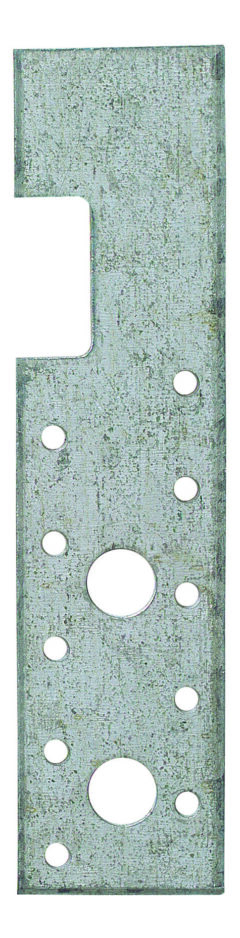

T-anchor plate

Jointing plates (and bars) used mainly in beam and roof constructions.

Material

3,0 mm pre-galvanized steel plate.

Nail holes: Ø 5,0 mm Bolt holes: Ø 13,0 mm Service class: 2

Article no	Thickness (mm)	Height (mm)	Width (mm)	Weight	Quantity/box	CAD (requires account)
5330160	3,0	160	40	0,13	100	DWG 3D Step
5330180	3,0	180	40	0,14	100	DWG 3D Step
5330200	3,0	200	40	0,16	100	DWG 3D Step

Anchor screws for fastening of our timber connectors.
