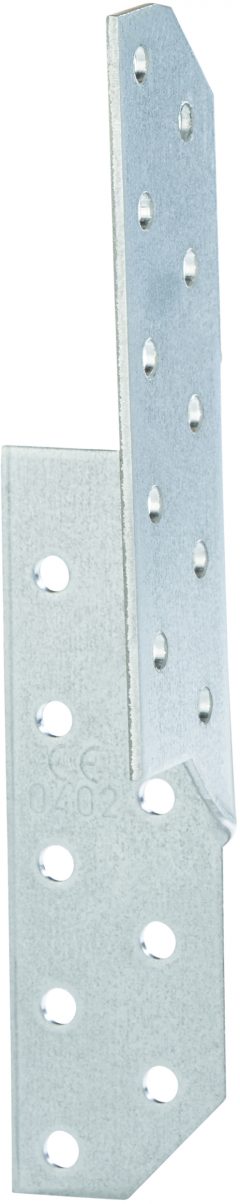

580170V

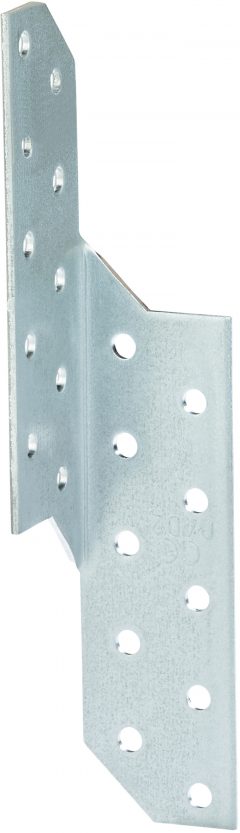

580170H
580170H

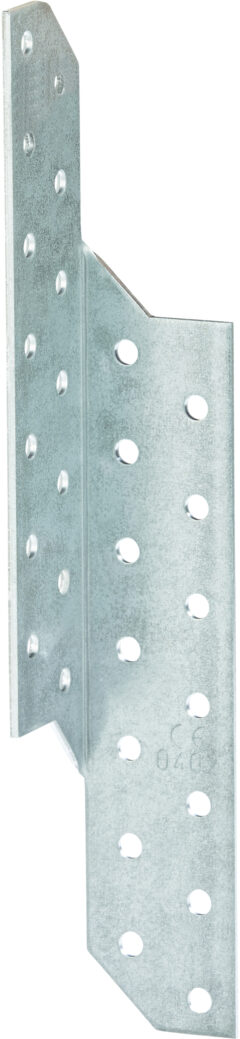

580210H

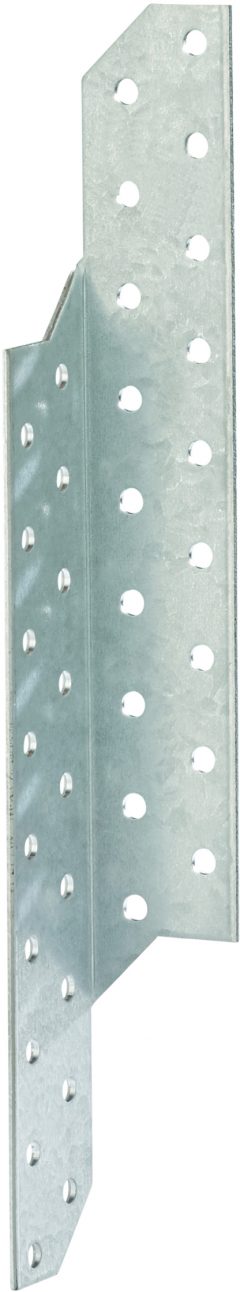

580250V
580290V

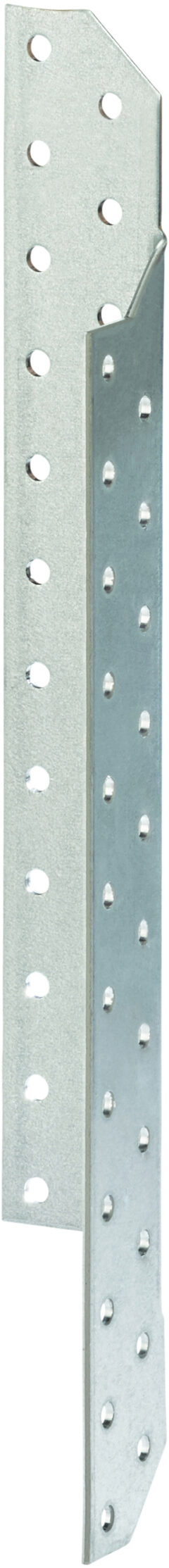

580290H
580330V

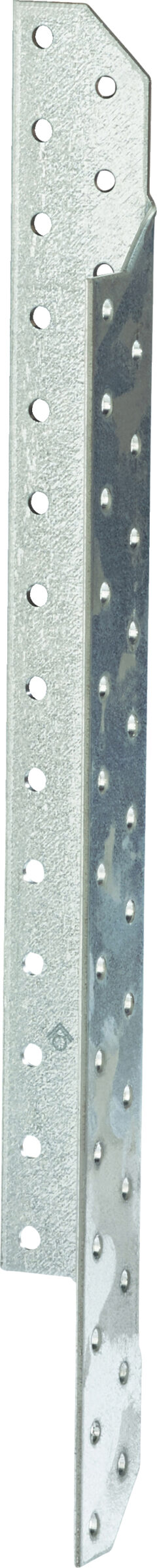

580330H

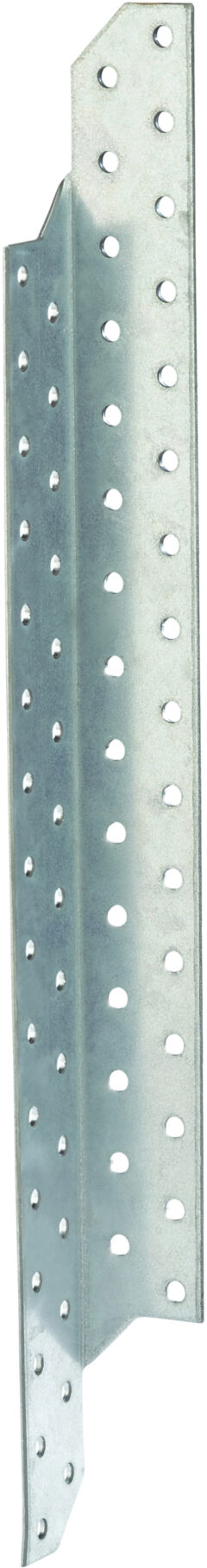

580370V

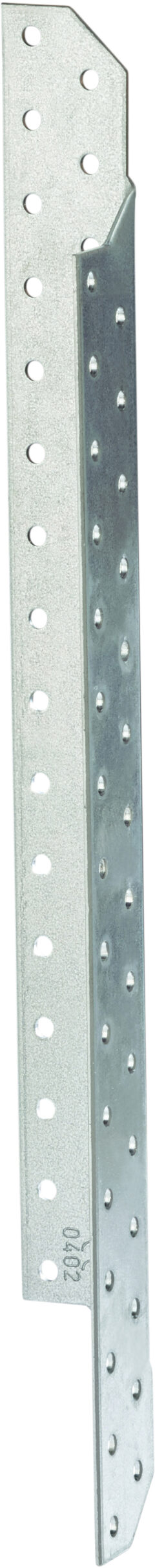

580370H

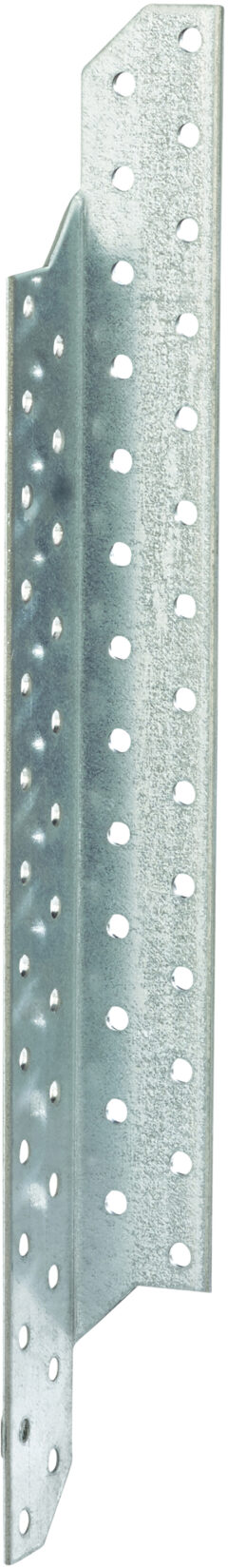

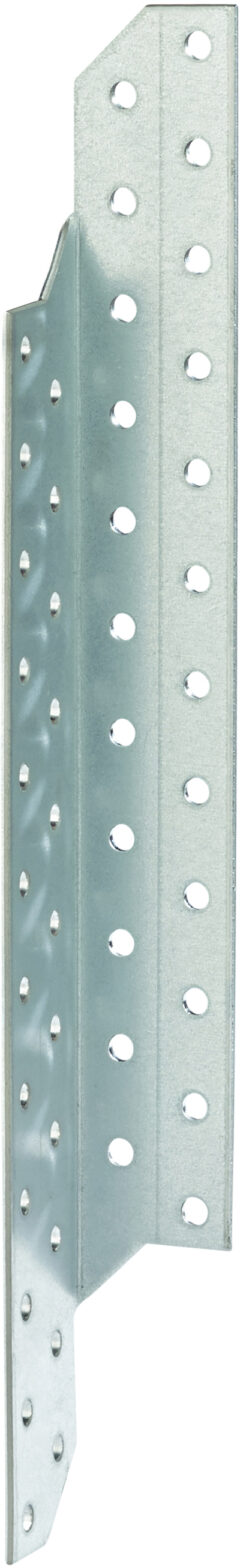

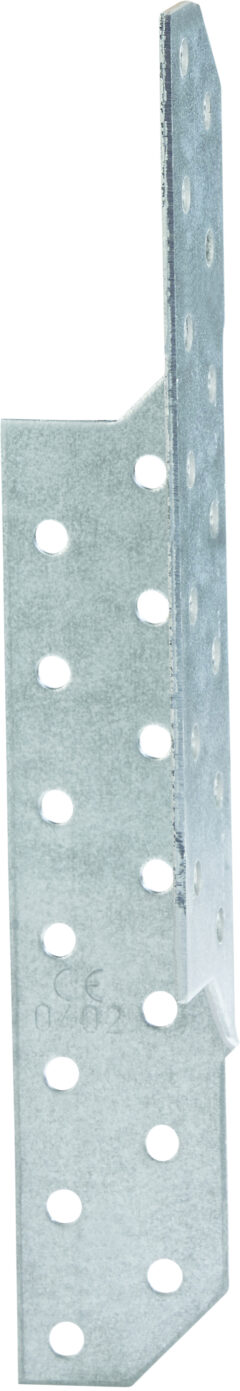

Purlin anchor
Used in roof frames and for crossing beams.
Material
2,0 mm pre-galvanized steel plate
Nail holes: Ø 5,0 mm
| Article no | Thickness (mm) | Height (mm) | Weight | Quantity/box | CAD (requires account) |
|---|---|---|---|---|---|
| 580170 | 2,0 | 170 | 0,10 | 50 | |
| 580170V | 2,0 | 170 | 0,10 | 50 | |
| 580170H | 2,0 | 170 | 0,10 | 50 | |
| 580210 | 2,0 | 210 | 0,14 | 50 | |
| 580210V | 2,0 | 210 | 0,14 | 50 | |
| 580210H | 2,0 | 210 | 0,14 | 50 | |
| 580250 | 2,0 | 250 | 0,18 | 50 | |
| 580250V | 2,0 | 250 | 0,18 | 50 | |
| 580250H | 2,0 | 250 | 0,18 | 50 | |
| 580290 | 2,0 | 290 | 0,22 | 50 | |
| 580290V | 2,0 | 290 | 0,22 | 50 | |
| 580290H | 2,0 | 290 | 0,22 | 50 | |
| 580330 | 2,0 | 330 | 0,26 | 50 | |
| 580330V | 2,0 | 330 | 0,26 | 50 | |
| 580330H | 2,0 | 330 | 0,26 | 50 | |
| 580370 | 2,0 | 370 | 0,30 | 50 | |
| 580370V | 2,0 | 370 | 0,30 | 50 | |
| 580370H | 2,0 | 370 | 0,30 | 50 |
